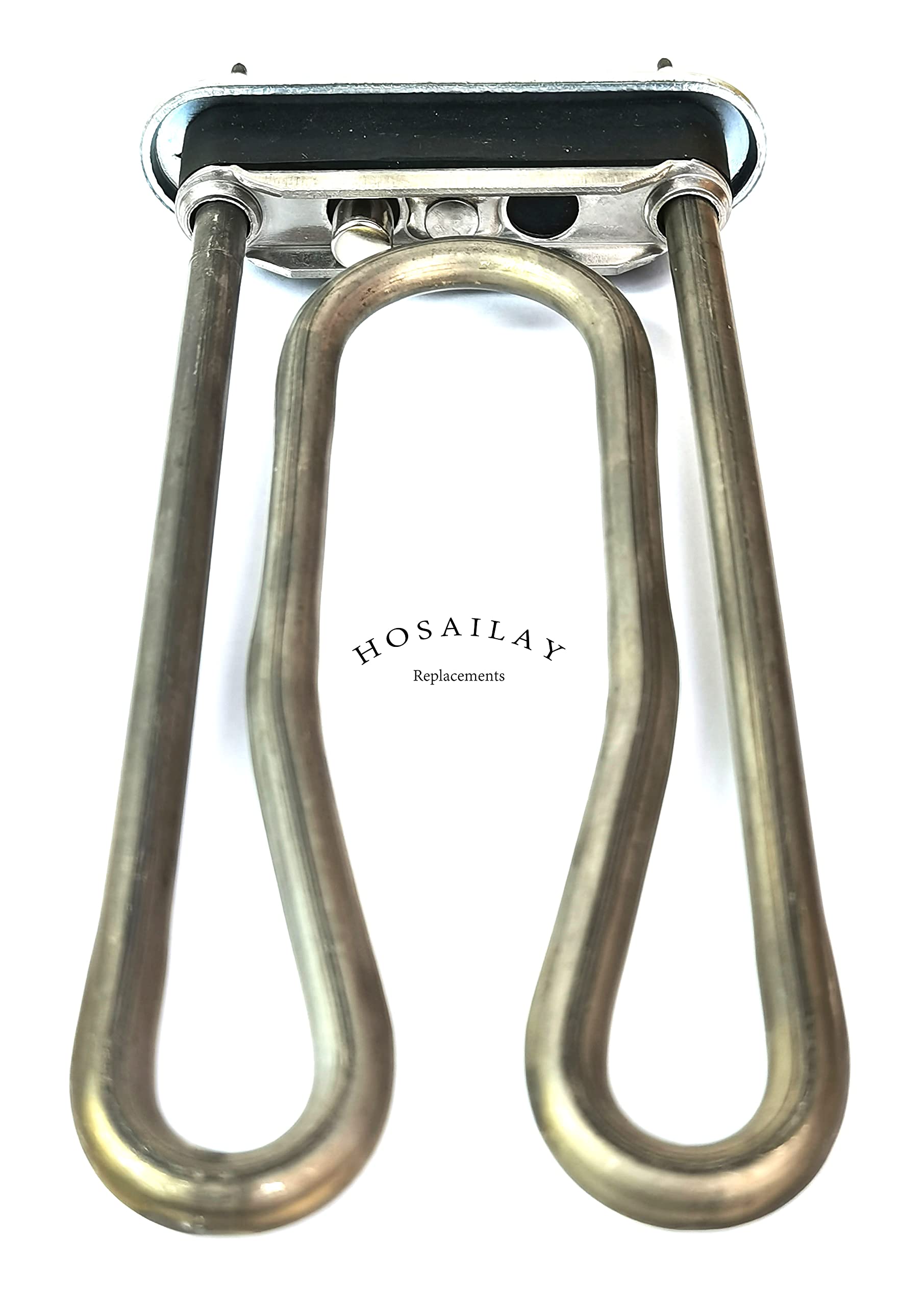

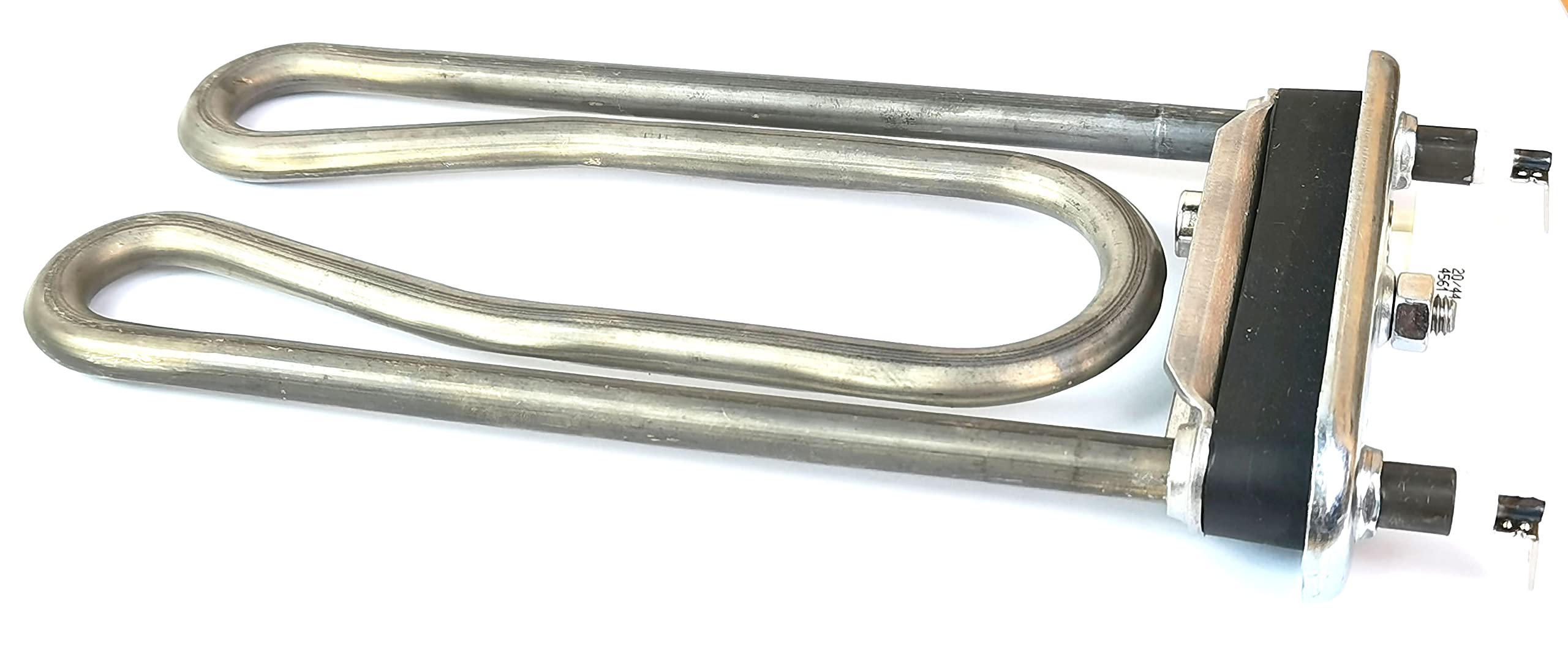

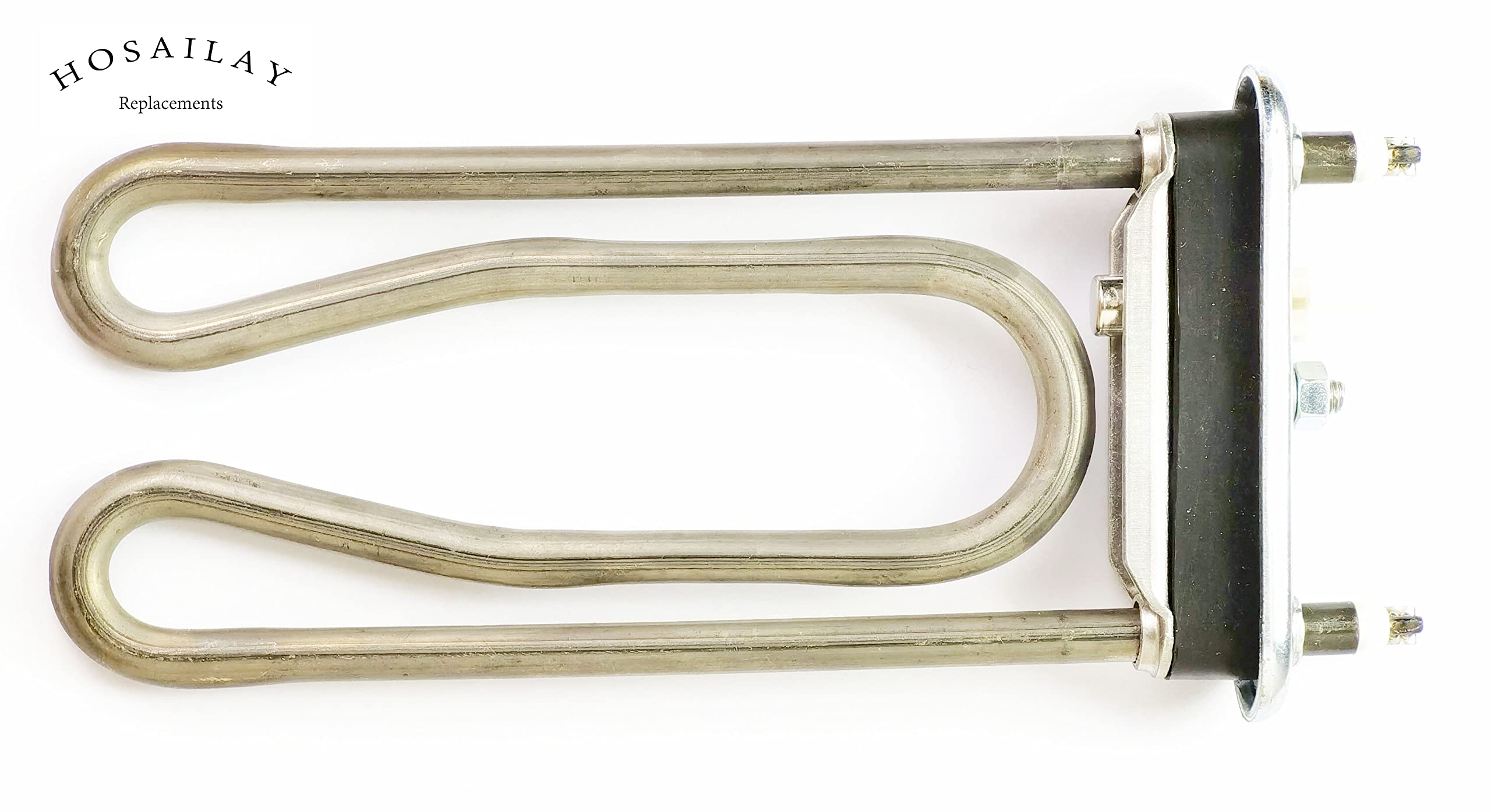

LG Dishwasher Heating Element Assembly 5301DD1001G 6026050 - Replacement Part for LG Dishwashers (Excluding Pump Heater Models) - Perfect for Quick Dishwasher Repairs at Home

Circuit diagram and trouble shooting Compatible models with LG dishwashers. D1607BB, LDS4821BB, LDF6920WW, D1608BB, D1613BB, LD6090TB1, LD6090TB2, D1412TB, D1607TB, LDF7932BB, D1607WB, LDS4821ST, LDS5811BB, LDS4821WW, D1608TB, D1613TB, LDF9932ST, LDF6920BB, D1608WB, D1613WB, LD6090BB1, LD6090BB2, LDF7932ST, LDS5811ST, LD6090WB1, LD6090WB2, LDF7932WW, LDS5811WW, LDF6920ST. Product descriptions Key features Doulbe fuse ensure your appliance's safety.Cut off time is from 45 to 85 seconds when it's overheated or heating without water. Installation tips It's better to espose the heating element under the sun for several hours to eject the moisture before installations. Use the liquip soap on gasket to prevent water leakage. When you find the heating element is not working, use the multimeter to check the resistance of heating element, which is about 11.9 Ohm. If not, repalce it.

?Make sure you choose the right model for you dishwahser before you buy it.

?Specifications。 Rated input voltage120 V, output power 1200±5% watts, power density6.9W/c㎡

?Materials Incloy 800 & Cr20Ni80.

?Warning. The heating element is suitable to work in water only.

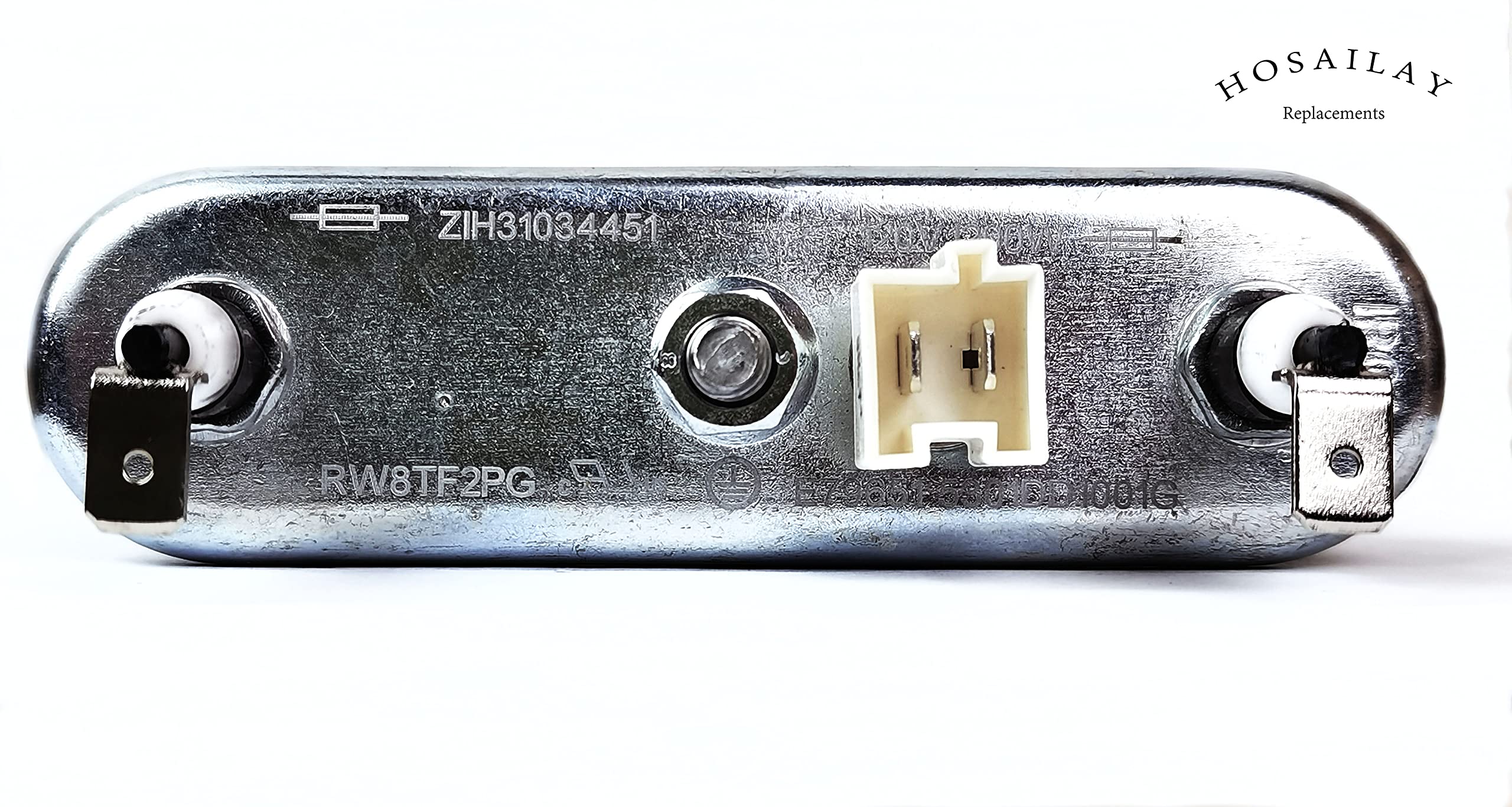

?Thermal fuse. Double thermal fuses ensure product's safety. Cut off temperature 332F, cut of time 149±68F.

?Replacing heating element assembly part number 5301dd1001g or 5301dd1001l of LG.

?Compatible models with LG LDF6810BB, LDF6810ST, LDF6920BB, LDF6920ST, LDF6920WW, LDF7810BB, LDF7810ST, LDF7932ST, LDF7932WW, LDF8812ST, LDF8922ST, LDF9810ST, LDF9810TB, LDF9932ST, LDS4821BB, LDS4821ST, LDS4821WW, LDS4921ST, LDS5040BB, LDS5040ST, LDS5040WW, LDS5540BB, LDS5540WW, LDS5811ST, LDS5811WW..

?If there is error code display, please check your wiring connection.

?The heating element is only a resistor which is conneted or broken. If the resistance value is 11.9 Ohm, then this product is good.
